  • Product Name: U bolt, U type bolt, square U bolt, round U bolt
  • Standard: ASME B18.31.5, or according to customer's requirement
  • Size: 5/16; 3/8 /M6-M36
  • Grade: SAE J429 Gr.2, 5,8;  CL 4.8, 5.8, 6.8, 8.8, 10.9, 12.9

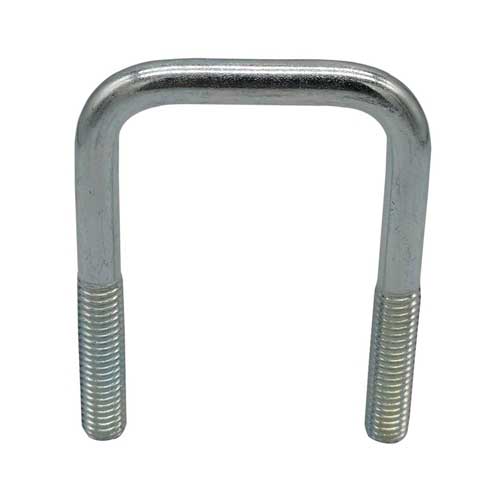

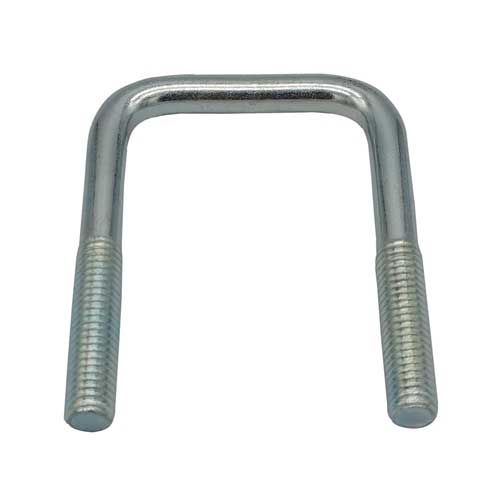

  • Description: U bolt is like the shape of”U” with threads on both ends, have two types: round bend and square bend. Round bend are mostly used for pipework, while square bend are often used for hanging duck work.

Material: alloy steel, carbon steel, stainless steel, brass, Aluminium, etc.

Finish: plain ( self colour), black oxide, zinc plated (yellow,blue, white-blue, black), HDG, Daromet, Geomet, Magni, nickel plated, painting, Mechanical galvanized, Teflon, etc.
Thread: M, UNC, UNF Head Mark: HR

Assembled parts: two hex nut and flat washers

Package:1) bulk in cartons (18kg or 25kg) + wooden pallet; 2) bulk in wood case,

3) bulk in pails + wooden pallet; 4) according to the customer's requirement

Trade term: EXW, FOB, CIF, DAP, DDU,DDP

Payment: T/T, L/C, Paypal, Western unoin, etc.

Web: www.shanghaihengrui.com

Strictly complies with ISO9001:2008 system, Each production process be well managed through self inspection, routing inspection by our workers. Our test equipments include: tensile machines, hardness tester, salt spray tester, Image measurement instrument, caliper, GO & NO-GO guage, etc.

Test and issue Material Test Report and Inspection Report by Hengrui before shipment to guarantee the product quality.  The test report from the third parts are also avaliable as customer's requirments.
