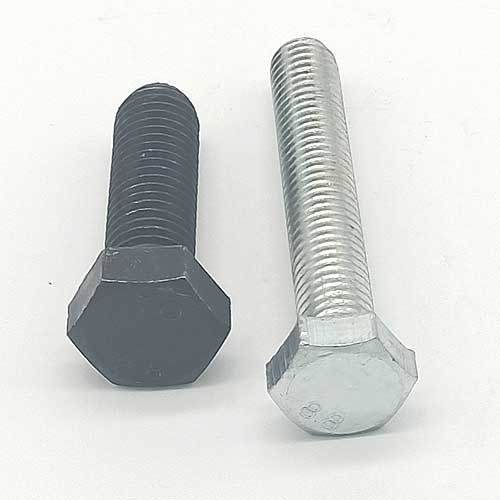

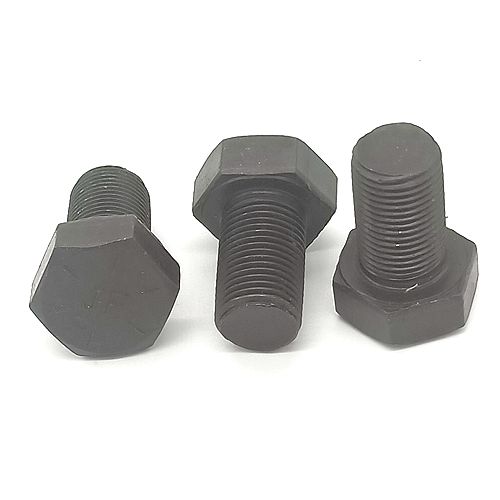

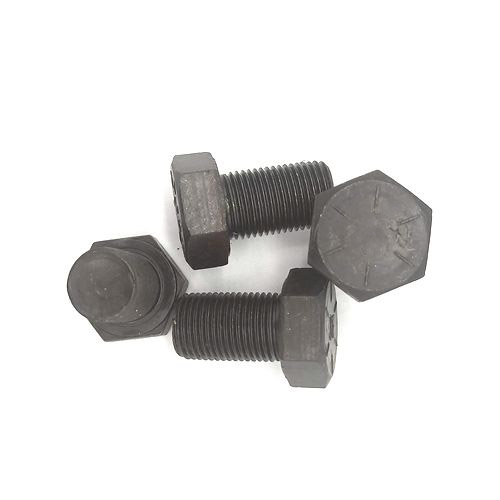

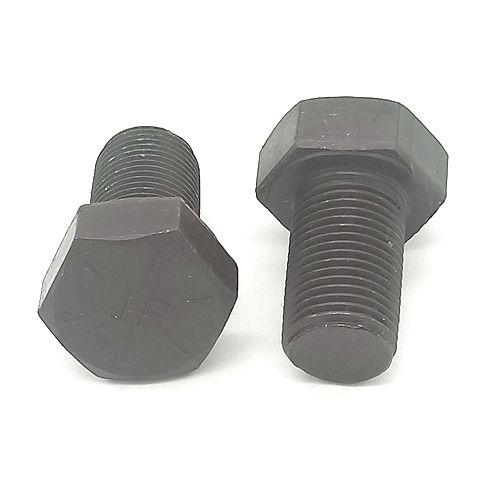

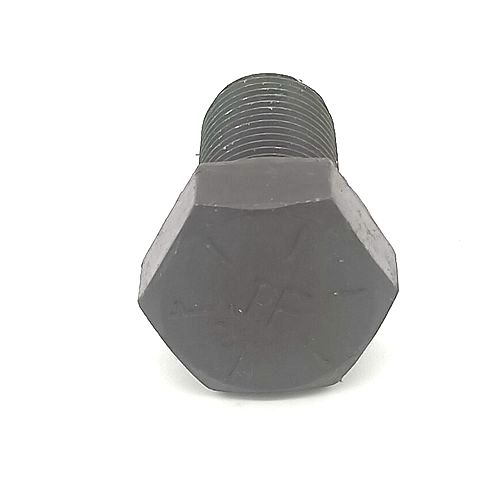

Hex Bolt

  • Standard: ASME/ANSI B 18.2.1, IFI149,DIN931, DIN933, DIN558, DIN960, DIN961, DIN558, ISO4014
  • Size: 1/4”-3”, M5-M64
  • Material: carbon steel, alloy steel, stainless steel, stainless steel, brass, etc.
  • Grade: SAE J429 Gr.2, 5, 8; ASTM A307 Gr.A; Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9​
  • Description:

DescriptionHex bolt is Hex head and machine threads with or without washerface, full thread or partial thread with full body. assembling with hex nut and flat washer. Also can called hex cap screw, hex tap screw, hexagon bolt, hexagon head bolt.

Thread: M, UNC, UNF Head Mark: HR

Surface treatment: plain, black, zinc plated, HDG, Dacromet, Nickel, Chrome,Geomet 500B, Magni, mechnical galvanized, painting, teflon, polishing, etc.

Assembled parts:  hex nut and flat washers

Package: 1) bulk in cartons (18kg or 25kg) + wooden pallet; 2) bulk in wood case,

3) bulk in pails + wooden pallet 4) according to the customer's requirement

Trade term: EXW, FOB, CIF, DAP, DDU,DDP

Payment: T/T, L/C, Paypal, Western unoin, etc.

Web: www.shanghaihengrui.com

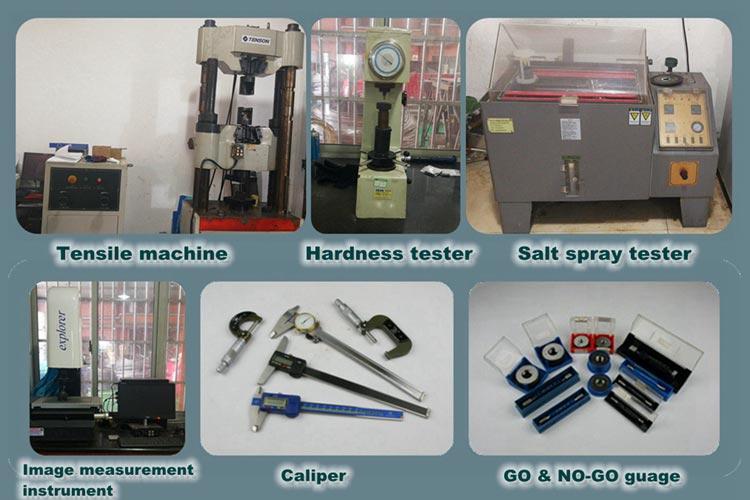

Strictly complies with ISO9001:2008 system, Each production process be well managed through self inspection, routing inspection by our workers. Our test equipments include: tensile machines, hardness tester, salt spray tester, Image measurement instrument, caliper, GO & NO-GO guage, etc.

Test and issue Material Test Report and Inspection Report by Hengrui before shipment to guarantee the product quality.  The test report from the third parts are also avaliable as customer's requirments.
